Arthrology

Created by Navah Hirschmann

What are the 3 structures of joints?
1. Fibrous 2. Cartilaginous 3. Synovial

1/47

TermDefinition
What are the 3 structures of joints?
1. Fibrous 2. Cartilaginous 3. Synovial
Fibrous Joint
no joint cavity and typically little to no movement
What type of joint is this?
term image

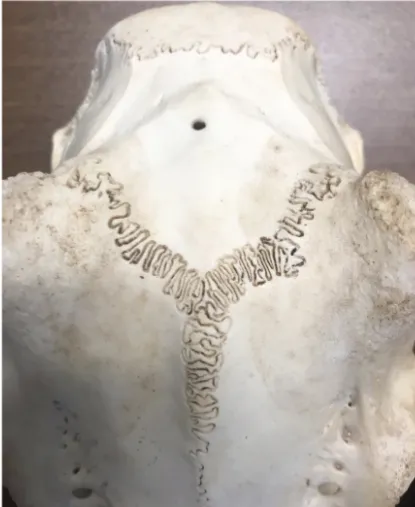

suture (fibrous joint)
What type of joint is this?
term image

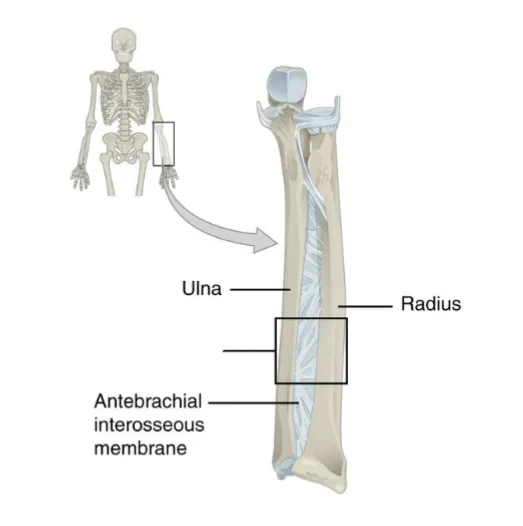

Syndesmosis joint - found between long bones
What type of joint is this?
term image

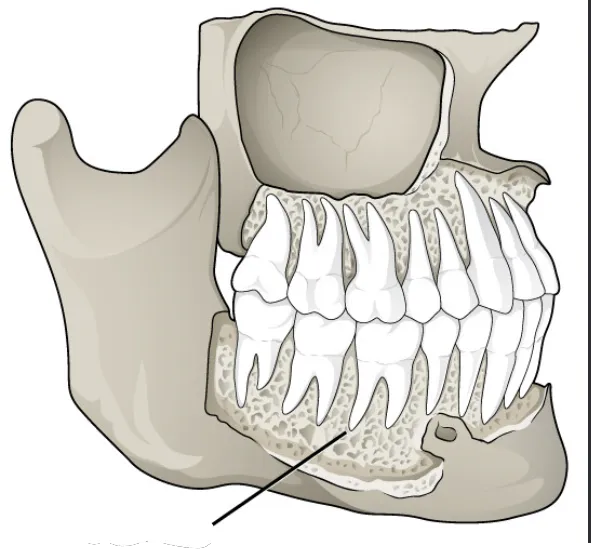

Gomphosis - found between teeth and mandible
Describe cartilaginous joints
no joint cavity and more movement than fibrous joints but less than synovial.
What are cartilaginous bones connected by?
fibrous or hyaline cartilage
What's the role of cartilaginous bone?
provides cushion during impact
What cartilaginous bone type is this?
term image

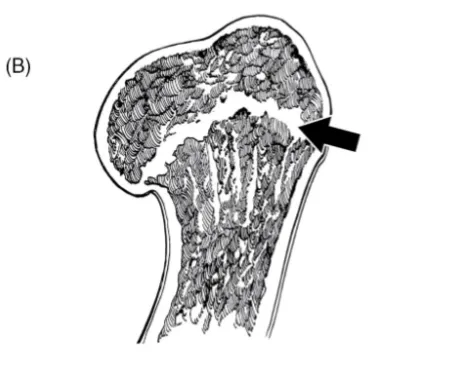

Synchondrosis - epiphyseal plate

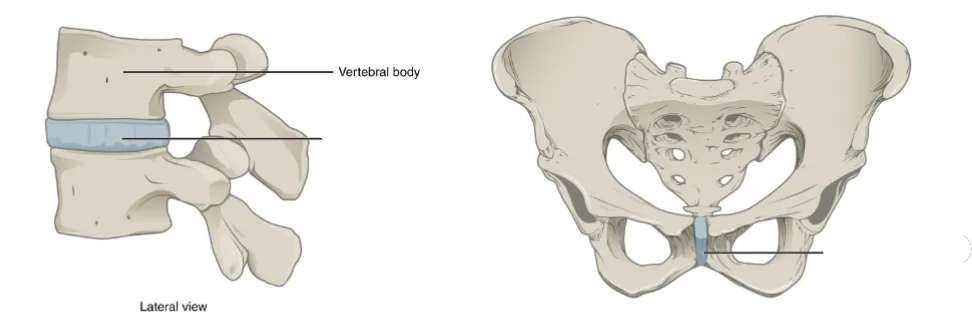

What type of cartilaginous joint is this?
term image
symphysis (there's intervertebral and pelvic)
Synovial Joints
complex joint with cavity and extensive movement

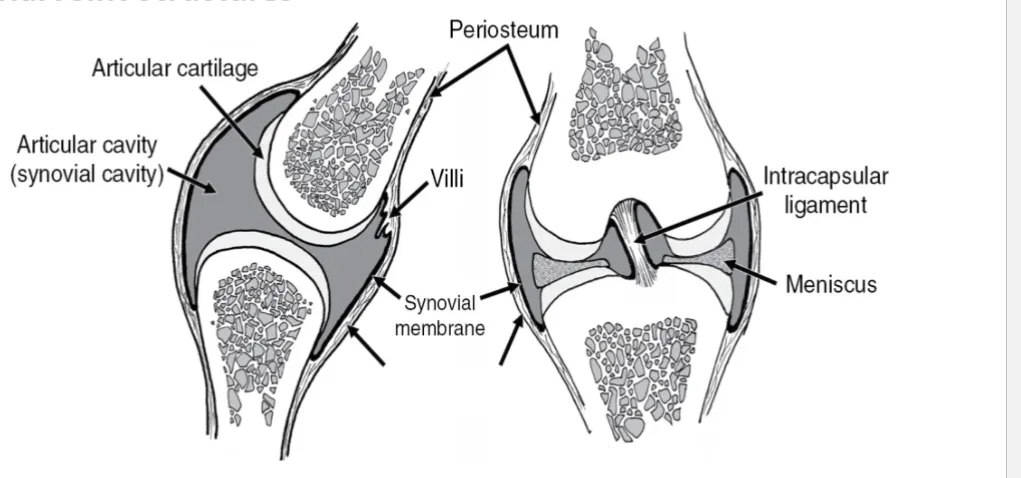

What is the blank area pointing towards?
term image
fibrous capsule

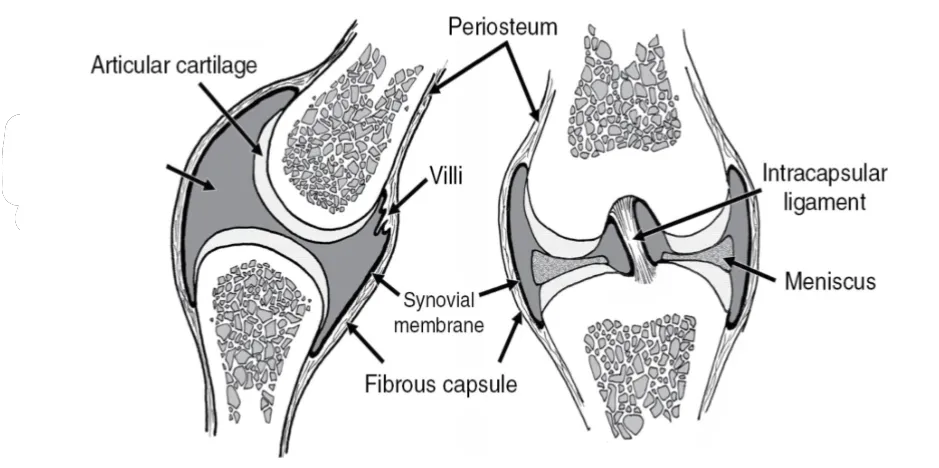

What is the blank pointing towards
term image
synovial cavity

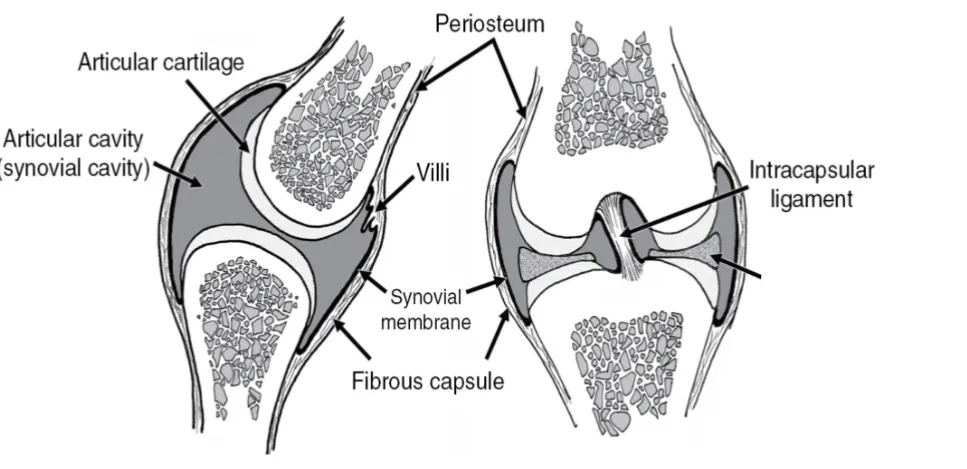

What is the blank pointing towards
term image
meniscus
What is the synovial membrane?
connective tissue that lines the fibrous capsule and produces synovial fluid
What's the articular cavity in the synovial joint structure?
cavity/space in between adjacent bones of the joint surrounded by fibrous capsule
What's the articular cartilage in the synovial joint structure?
hyaline (glass like) cartilage covering the bone within the joint. Also supported by synovial fluid.
What's the Menisci within the synovial joint structure?
fibrocartilage disks between bones in some joints . Distributes weight and reduces friction.
Ligament
dense connective tissues that connects bone to bone
Tendon
dense connective tissue that connects muscle to bone
Intracapsular ligaments
ligaments inside a joint , covered in synovial membrane
Extracapsular ligaments
ligaments external to joint formed by from fibrous capsule
Bursa
fluid filled sac lined with synovial membrane and lubricated with synovial fluid

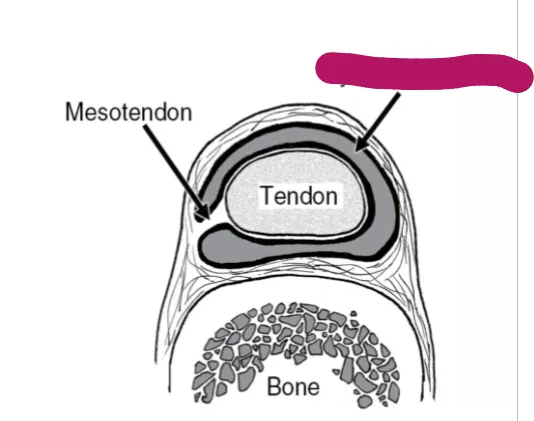

What is the blank lined to? What is its purpose?
term image
the tendon sheath, wraps around the tendon to protect it as it passes over a joint

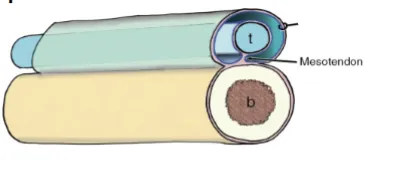

What is the red box pointing to?
term image
Synovial tendon sheath
Adduction
toward median plane
Abduction
away from median plane
Pronation
rotates extremity so dorsum is up
Supination
rotates extremity so palmer/planter is up
What type of joint is this?
term image

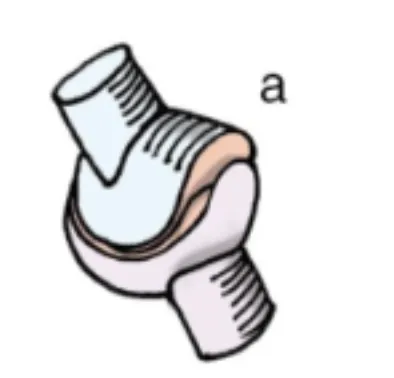

saddle joint
What type of joint is this?
term image
pivot joint
What type of joint this?
term image

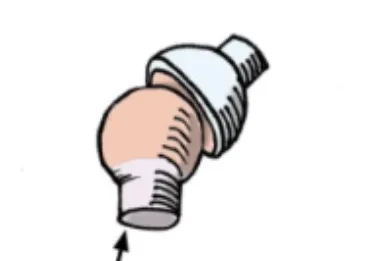

spheroid joint
What type of joint this?
term image
condylar joint
What type of joint is this?
term image
hinge joint
What type of joint is this?
term image
plane joint
What does a hinge joint do?
extension, flexion, and hyperextension movements
What movement does a plane joint perform?
slight gliding movement between flat or short bones
What movement does a pivot joint perform?
rotational movement around an axis
What movement does a spheroid joint perform?
permits all types of movement except glide. resembles a ball and socket
What movement does a condylar joint perform?
convex on concave surfaces - all movements except gliding and hyperextension
What movement does a saddle joint perform?
all movements except rotation
What's a dislocation?
separation of joint and stretching or tearing of ligaments
partial dislocation is called?
subluxation
What's a sprain?
stretching or tearing of ligaments
What's a strain?
excessive stretching of muscle or tendon
Arthritis / Osteoarthritis
inflammation within the joint that can result in loss of cartilage and bone ( Degenerative Joint Disease)
Splint
Swelling below carpal joint associated with inflammation between metacarpal III and smaller metacarpals II and IV
